In OSB production, the quality of the final panel is closely connected with how effectively resin is distributed onto wood strands.
Even when the wood preparation, drying and forming processes are properly controlled, inconsistent glue application can still affect the quality and stability of the finished board.
This is why the Drum Mixer and High Speed Atomizer are important components in the OSB glue application system.
The Drum Mixer is responsible for creating an effective mixing environment for wood strands and adhesive, while the High Speed Atomizer helps transform liquid resin into a fine spray for more uniform surface coverage.
Together, these components contribute to the efficiency and stability of the glue application process.
OSB is manufactured from oriented wood strands that are bonded together with resin under controlled pressure and temperature.
The adhesive needs to be distributed sufficiently over the strand surfaces.
If the resin distribution is inconsistent, several problems may occur:
Therefore, the objective of the glue application system is not simply to add resin.
The real objective is:
Controlled Resin Application + Uniform Strand Coverage + Stable Mixing

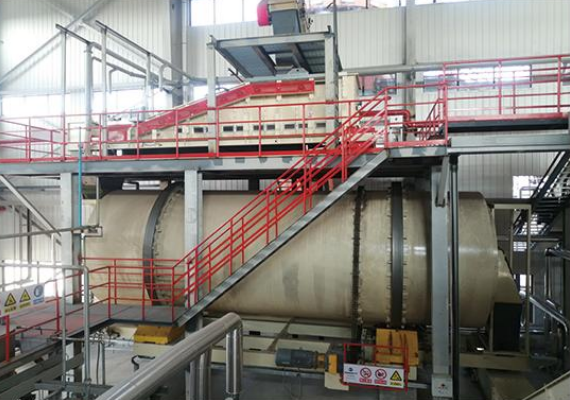

An OSB Drum Mixer is a specialized mixing machine used to combine wood strands with resin and other required additives.
The rotating drum creates continuous movement of the strands while the adhesive is introduced into the mixing zone.
This allows the resin to come into contact with a large quantity of moving strands.
Depending on the production system, the glue application process may involve different resin types, wax, additives and spraying configurations.
The exact design should therefore correspond to the raw material and production requirements.
Wood strands are irregular materials.
They differ in:
This makes uniform resin application more challenging than applying adhesive to flat materials.
A properly designed Drum Mixer helps maintain continuous material movement so that the strands can interact effectively with the sprayed adhesive.
The result can be a more consistent distribution of resin throughout the strand flow.

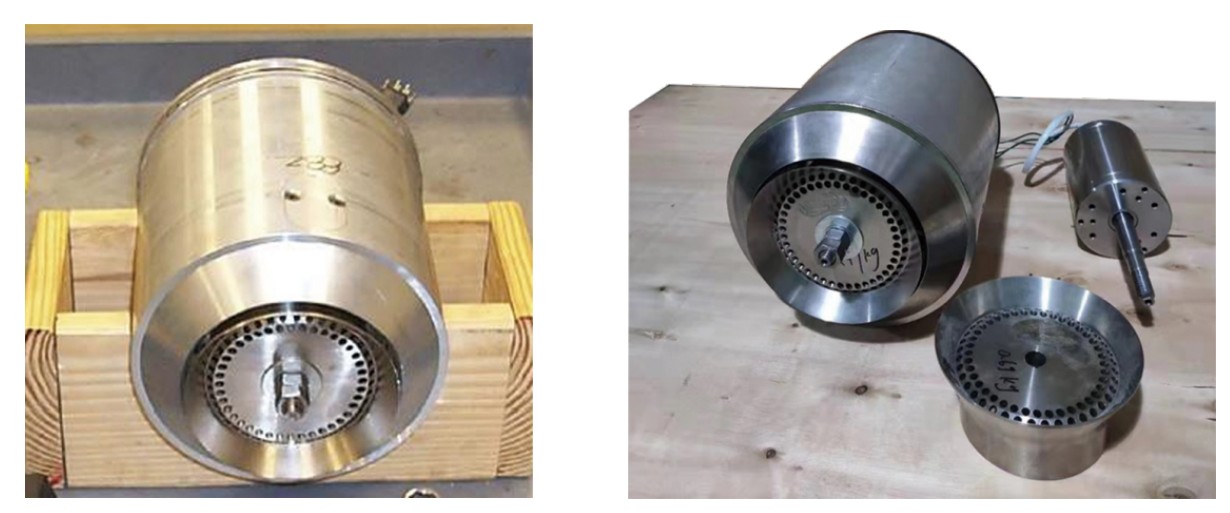

The High Speed Atomizer is another critical component of the glue application system.
Its primary function is to atomize liquid adhesive into fine droplets.
Instead of delivering resin as a large continuous stream, high-speed rotation breaks the liquid into smaller particles that can be distributed across the moving wood strands.
The quality of atomization can influence:
This makes the atomizer an important component rather than simply a spray accessory.
Imagine two glue application systems using the same quantity of resin.
One produces relatively large droplets, while the other generates a more controlled and fine spray.
The amount of resin may be identical, but the distribution across the strands can be very different.
A suitable atomization system aims to create:
Appropriate Droplet Size
Stable Spray Pattern
Consistent Resin Flow
Effective Strand Coverage
This is one of the key reasons High Speed Atomizers are widely used in specialized adhesive application systems.
The real value comes from the cooperation between these two components.
The process can be simplified as:
Wood Strands
↓
Continuous Drum Movement
↓
Resin Atomization
↓
Fine Droplets Contact Strands
↓
Mixing & Coating
↓
Uniformly Glued Strands
↓
Forming
↓
Hot Pressing
↓
OSB Panel
The Drum Mixer controls the movement and mixing environment.
The High Speed Atomizer controls how the adhesive is introduced into that environment.
Both therefore influence the overall glue application result.
High Speed Atomizers operate under demanding conditions.
Resin can accumulate around the spraying components, especially when:
Potential symptoms include:
Regular inspection and proper cleaning are therefore important.
The Drum Mixer also requires attention during long-term operation.
Typical issues can include:
Poor feeding or accumulation can affect mixing consistency.
Continuous contact with wood strands and additives can cause wear on internal components.
Adhesive accumulation can change the internal working conditions.
Abnormal noise or vibration may indicate issues with bearings, drive components or other mechanical parts.
Changes in speed, loading or material moisture can influence mixing results.
Maintenance should therefore cover both the mechanical system and the glue application system.
One of the important objectives of a modern OSB glue application system is to achieve an appropriate balance between bonding performance and resin consumption.
More resin does not automatically mean better panel quality.
If the resin is poorly distributed, increasing the amount of adhesive may not completely solve the problem.
A more effective approach is to improve:
Resin Distribution
Atomization
Strand Coverage
Mixing Efficiency
and
Process Control
The actual resin content should always be determined according to the specific resin system, raw material and board requirements.
Because the atomizer directly handles adhesive, maintenance is particularly important.
Recommended checks include:
If the spray pattern changes noticeably, the atomizer should be inspected rather than simply increasing the resin flow rate.
For the Drum Mixer, operators should regularly inspect:
Cleaning is also important because hardened resin deposits can gradually influence the effective mixing environment.
Preventive maintenance can help reduce unexpected production interruptions.
A High Speed Atomizer should not be selected only according to appearance or dimensions.
Important parameters may include:
Machine Model
Resin Type
Resin Viscosity
Required Flow Rate
Atomization Method
Rotation Speed
Spray Pattern
Installation Dimensions
Operating Conditions
Replacement Part Specifications
Providing the original equipment information helps ensure better compatibility.
For Drum Mixer replacement components, HUATAO recommends confirming:
Customized components can be evaluated according to the original equipment when standard parts are not suitable.
HUATAO supplies equipment components and spare parts for OSB and other wood-based panel production lines.
Our related products include:
The products can be supplied according to equipment specifications, drawings, dimensions and actual production requirements.
In an OSB production line, many components may appear relatively small compared with the major processing equipment.
However, a small component can still influence the stability of an important production process.
The High Speed Atomizer, for example, directly participates in adhesive atomization.
The Drum Mixer directly influences strand movement and mixing.
Therefore, component quality should be evaluated based on:
Material Quality
Manufacturing Accuracy
Wear Resistance
Equipment Compatibility
Operating Stability
Service Life
For continuous industrial production, these factors can have a direct impact on maintenance requirements and downtime.
The Drum Mixer and High Speed Atomizer are two important components of the glue application process in OSB production.
The Drum Mixer provides a controlled environment for continuous strand movement and mixing, while the High Speed Atomizer helps distribute adhesive through controlled atomization.
Their performance affects the quality of resin distribution, strand coverage and overall process stability.
For OSB manufacturers, selecting suitable glue application equipment and maintaining critical components can help support stable production and consistent panel quality.
HUATAO provides OSB Drum Mixers, High Speed Atomizers, Atomizer Discs, Spray Guns, Glue Blender Claws and other wood-based panel machinery components for international customers.
